product details

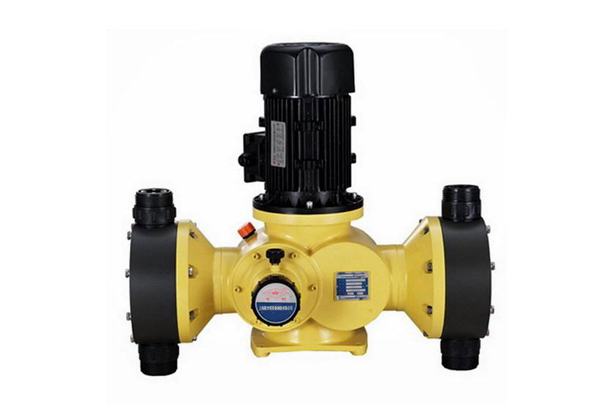

Gb-s series precision metering pump

1. Cast aluminum shell, high heat dissipation performance, light overall weight, suitable for all kinds of acid and alkali solution, non-toxic and tasteless.

2. Double cam mechanism, superior performance ratio, double head dosing.

3. Contact medium pump head is made of PVC, PTFE and stainless steel.

4. It is widely used in water treatment industry with low pressure requirements due to its high cost performance.

5. When the pump is running or stopped, the flow can also be adjusted at will, and the output can be quantified.

6. The diaphragm is pressed by multi-layer composite structure. The first layer is super tough Teflon acid resistant film, the second layer is EPDM elastic rubber, the third layer is 3mm thick SUS304 supporting iron core, the fourth layer is reinforced by reinforced nylon fiber, and the fifth layer is completely wrapped with EPDM elastic rubber, which can effectively improve the service life of the diaphragm.


021-62586878

Overview of gb-s series precision metering pump

Measuring range: 0-3600l / h (1800l / h for larger single head)

Pressure range: 0-0.4mpa

Driving mode: motor driven

Control mode: manual and automatic control (can receive 4-20mA signal to adjust the flow)

1. Cast aluminum shell, high heat dissipation performance, light overall weight, suitable for all kinds of acid and alkali solution, non-toxic and tasteless.

2. Double cam mechanism, superior performance ratio, double head dosing.

3. Contact medium pump head is made of PVC, PTFE and stainless steel.

4. It is widely used in water treatment industry with low pressure requirements due to its high cost performance.

5. When the pump is running or stopped, the flow can also be adjusted at will, and the output can be quantified.

6. The diaphragm is pressed by multi-layer composite structure. The first layer is super tough Teflon acid resistant film, the second layer is EPDM elastic rubber, the third layer is 3mm thick SUS304 supporting iron core, the fourth layer is reinforced by reinforced nylon fiber, and the fifth layer is completely wrapped with EPDM elastic rubber, which can effectively improve the service life of the diaphragm.


Material of pump head

Working conditions

Metering pump head: PVC, SUS304, SUS316, PTFE

Ambient temperature: - 15 ℃ - normal temperature

Metering valve: PVC, SUS304, SUS316, polytetrafluoroethylene

Motor: two phase, three-phase standard motor or explosion-proof motor

Valve ball: silica, SUS304, SUS316, ceramic

Power: 0.75KW 1.1KW 1.5kw

Seal: PTFE, PVC

Protection grade: IP54


model

flow (L/H)

pressure (Mpa)

Impact times (min-1)

Motor power (kw)

In and out diameter (mm)

weight (KG)

GB-S 1200/0.5

1200

0.5

96

1.5

DN25

70

GB-S 1500/0.5

1500

0.5

96

1.5

DN25

70

GB-S 2000/0.4

2000

0.4

144

1.5

DN25

70

GB-S 2500/0.3

2500

0.3

144

1.5

DN40

75

GB-S 320Q/0.3

3200

0.3

144

1.5

DN40

75


Main application scope and advantages of gb-s series precision metering pump

Cast aluminum shell, high heat dissipation performance, light overall weight, suitable for all kinds of acid and alkali solution, non-toxic and tasteless.

It adopts cam mechanism. It has no leakage on the whole and can be placed on the medicine tank or pipeline.

Contact medium pump head is made of PVC, PTFE and stainless steel.

It is widely used in water treatment industry with low pressure requirements due to its high cost performance.

When the diaphragm corrosion-resistant metering pump is running or stopped, the flow can be adjusted arbitrarily and the output can be quantified.

The diaphragm is made of multi-layer composite structure. The first layer is super tough Teflon acid resistant film, the second layer is EPDM elastic rubber, the third layer is 3.mm thick SUS304 to support the iron core, the fourth layer is reinforced with reinforced nylon fiber, and the fifth layer is completely wrapped with EPDM elastic rubber, which can effectively improve the service life of the diaphragm.

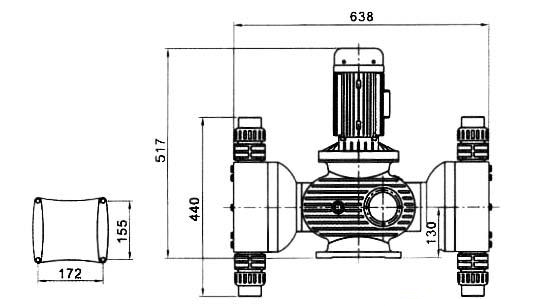

GB-S系列精密計量泵  安裝尺寸.jpg
