QBY pneumatic diaphragm pump

QBY series pneumatic diaphragm pump produced by Shanghai xinguangming Pump Co., Ltd. is a new type of conveying machinery. It uses compressed air as the power source. It can absorb all kinds of corrosive liquid, liquid with particles, high viscosity, volatile, flammable and toxic liquid. Its performance parameters are similar to wllden pvmps of Germany and marlowpumps of USA.

021-62586878

Product overview

QBY series pneumatic diaphragm pump produced by Shanghai xinguangming Pump Co., Ltd. is a new type of conveying machinery. It uses compressed air as the power source. It can absorb all kinds of corrosive liquid, liquid with particles, high viscosity, volatile, flammable and toxic liquid. Its performance parameters are similar to wllden pvmps of Germany and marlowpumps of USA.

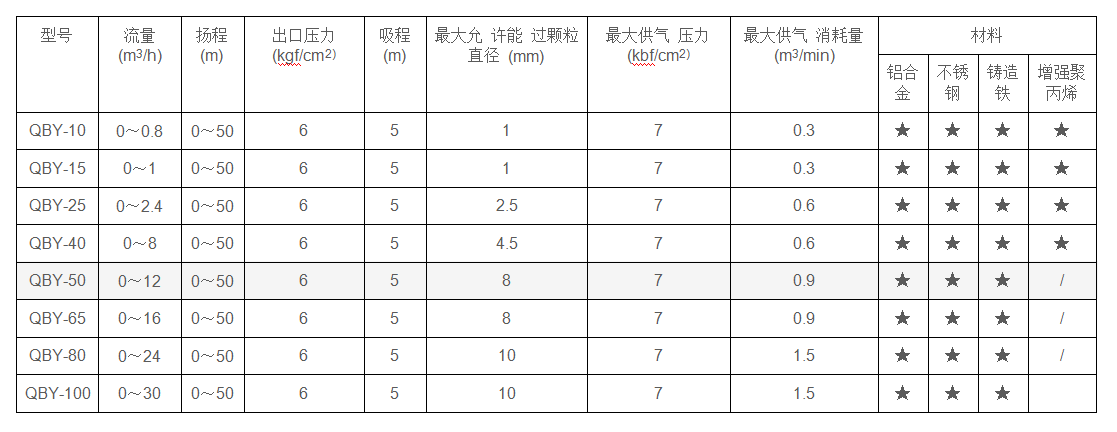

technical parameter

Flow rate: 0-30m3 / h;

Lift: 0-50m;

Diameter: 10-100 mm;

Temperature: - 15 - + 150 ℃;

Pressure: 0.1-0.7mpa;

Self priming height: 5-7m.



Scope of application

1. Pumping peanut butter, pickles, mashed potatoes, small red sausage, jam apple pulp, chocolate, etc.

2. Pump paint, gum, pigment.

3. Adhesive and glue, all kinds can be pumped.

4. All kinds of glaze paste of tile, porcelain, brick and pottery.

5. After the well is drilled, the sediment is pumped and grouted.

6. Pump various emulsions and fillers.

7. Pump all kinds of sewage.

8. Pumps are used for oil tankers and barges are used to clear the warehouses and absorb the sewage in the tanks.

9. Hops and fermentation powder slurry, syrup, sugar density.

10. Pump the water in mine, tunnel, tunnel, mineral processing and slag. Pumping cement grouting and mortar.

11. All kinds of rubber paste.

12. All kinds of abrasives, corrosive agents, oil and mud, cleaning oil dirt and general containers.

13. All kinds of highly toxic, flammable and volatile liquids.

14. All kinds of strong acid, strong alkali, strong corrosive liquid.

15. All kinds of high temperature liquid are high and can withstand 150 ℃.

16. It is used as the front stage pressure supply device of various solid-liquid separation equipment.
